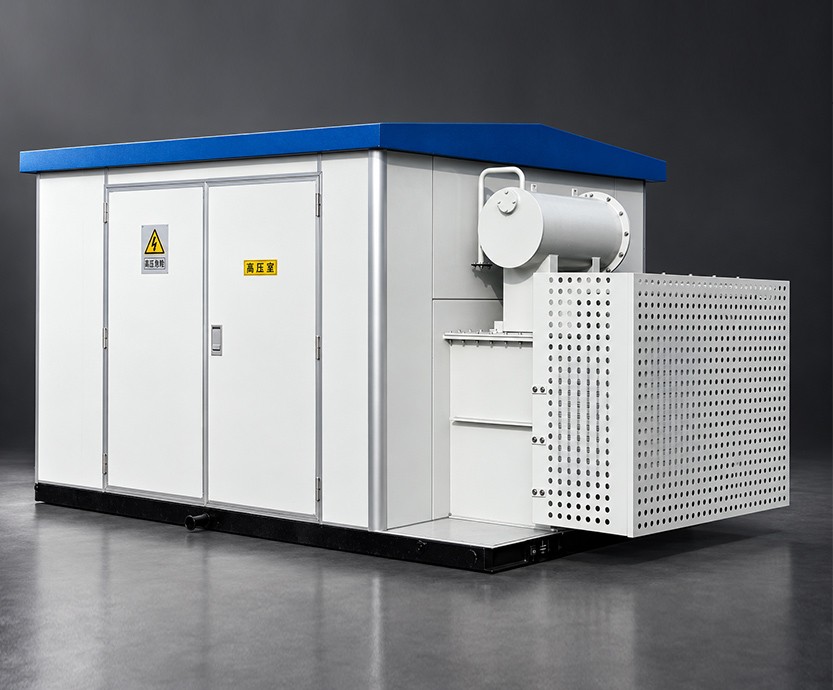

用于光伏、风电及储能系统的电压变换与升压配套，包含油浸式和干式结构。选型结合变流器输出、绕组数量、负载曲线、谐波及并网侧要求。
Oil free, with strong fire resistance, eliminating the risk of oil leakage; Capable of withstanding short-circuit current and overvoltage, and adapting to harsh environments.
Using environmentally friendly materials, low noise and no pollution, to assist in the construction of a green power grid.
Efficient cooling system ensures that the equipment maintains low temperature during long-term operation, effectively extending the service life of the equipment.
Humanized design, simple operation, convenient and fast daily inspection and maintenance, significantly reducing operating costs.
Durable shell design, impact resistance, corrosion resistance, able to adapt to various complex and harsh working environments.
Modular structure design, supporting quick disassembly and assembly, combined with intelligent monitoring system, making operation and maintenance work more worry free and effortless.
35kV干式三相双绕组无励磁调压新能源发电侧光伏用、风电用、储能用变压器
| 额定容量 (kVA) Rated capacity | 额定电压及分接范围 Rated voltage and tapping range | 联结组别 Vector group | 空载电流 (%) No load current | 阻抗电压 (%) Impedance voltage | 空载损耗 (kW) No load losses | 负载损耗 (kW) On load losses | ||||
| 高压 HV | 分接范围(%) Tapping range | 低压 LV | B (100℃) | F (120℃) | H (145℃) | |||||
| 1000 | 35~38.5 | ±2×2.5 ±5 | 0.4~1.14 | Dyn11 Yd11 Yyn0 | 0.85 | 6.0~14.0 | 1.4 | 8.8 | 9.4 | 10.1 |
| 1250 | 0.75 | 1.6 | 10.7 | 11.4 | 12.2 | |||||
| 1600 | 0.75 | 1.9 | 13.1 | 13.9 | 14.9 | |||||
| 2000 | 0.65 | 2.2 | 15.4 | 16.4 | 17.5 | |||||
| 2500 | 0.65 | 2.6 | 18.5 | 19.6 | 21 | |||||
| 3000 | 0.60 | 3.2 | 20.3 | 21.6 | 23.1 | |||||
| 3150 | 0.60 | 3.5 | 20.7 | 22.1 | 23.5 | |||||
| 4000 | 0.60 | 4.1 | 24.9 | 26.5 | 28.2 | |||||
| 4500 | 0.55 | 4.4 | 27.4 | 29.1 | 31.1 | |||||
| 5000 | 0.55 | 4.8 | 29.6 | 31.4 | 33.6 | |||||
| 6300 | 0.55 | 5.7 | 34.6 | 36.7 | 39.2 | |||||
| 8000 | Dyn11 Yd11 YNd11 | 0.45 | 6.9 | 41.7 | 44.3 | 47.3 | ||||
| 10000 | 0.45 | 8.2 | 49.0 | 52.1 | 55.7 | |||||
10kV干式三相双绕组无励磁调压新能源发电侧光伏用、风电用、储能用变压器
| 额定容量 (kVA) Rated capacity | 额定电压及分接范围 Rated voltage and tapping range | 联结组别 Vector group | 空载电流 (%) No load current | 阻抗电压 (%) Impedance voltage | 空载损耗 (kW) No load losses | 负载损耗 (kW) On load losses | ||||
| 高压 HV | 分接范围(%) Tapping range | 低压 LV | B (100℃) | F (120℃) | H (145℃) | |||||
| 500 | 10~12 | ±5 ±2×2.5 | 0.4~1.14 | Dyn11 Yyn0 | 0.8 | 4.0~10.0 | 0.67 | 4.13 | 4.39 | 4.705 |
| 630 | 0.7 | 0.775 | 4.975 | 5.29 | 5.66 | |||||
| 800 | 0.7 | 0.875 | 5.895 | 6.265 | 6.715 | |||||
| 1000 | 0.7 | 1.02 | 6.885 | 7.315 | 7.885 | |||||
| 1250 | 0.7 | 1.205 | 8.19 | 8.72 | 9.335 | |||||
| 1600 | 0.7 | 1.415 | 9.945 | 10.555 | 11.32 | |||||
| 2000 | 0.6 | 1.76 | 12.24 | 13.005 | 14.005 | |||||
| 2500 | 0.6 | 2.08 | 14.535 | 15.445 | 16.605 | |||||
| 3150 | 0.5 | 2.52 | 17.95 | 19.095 | 20.49 | |||||
35kV 油浸式三相双绕组无励磁调压新能源发电侧光伏用、风电用、储能用变压器
| 额定容量 (kVA) Rated capacity | 额定电压及分接范围 Rate voltage and tapping range | 联结组别 Vector group | 空载电流 (%) No load current | 阻抗电压 (%) Impedance voltage | 空载损耗 (kW) No load losses | 负载损耗 (kW) On load losses | ||
| 高压 HV | 分接范围(%) Tapping range | 低压 LV | ||||||
| 1000 | 35~38.5 | ±2×2.5 ±5 | 0.4~1.14 | Dy11 Yd11 | 0.52 | 6.0~14.0 | 0.6 | 10.4 |
| 1250 | 0.44 | 0.8 | 12.5 | |||||
| 1600 | 0.36 | 0.9 | 14.9 | |||||
| 2000 | 0.36 | 1.2 | 16.5 | |||||
| 2500 | 0.36 | 1.4 | 17.6 | |||||
| 3000 | 0.36 | 1.6 | 20.3 | |||||
| 3150 | 0.36 | 1.7 | 20.7 | |||||
| 4000 | 0.36 | 2 | 24.6 | |||||
| 4500 | 0.36 | 2.2 | 27.1 | |||||
| 5000 | 0.36 | 2.4 | 28.2 | |||||
| 5500 | 0.36 | 2.6 | 30.3 | |||||
| 6300 | 0.36 | 2.9 | 31.5 | |||||
| 8000 | YNd11 | 0.28 | 4 | 34.6 | ||||
| 10000 | 0.28 | 4.8 | 40.8 | |||||
| 12500 | 0.24 | 5.6 | 50.7 | |||||
10kV 油浸式三相双绕组无励磁调压新能源发电侧光伏用、风电用、储能用变压器
| 额定容量 (kVA) Rated capacity | 额定电压及分接范围 Rate voltage and tapping range | 联结组别 Vector group | 空载电流 (%) No load current | 阻抗电压 (%) Impedance voltage | 空载损耗 (kW) No load losses | 负载损耗 (kW) On load losses | ||
| 高压 HV | 分接范围(%) Tapping range | 低压 LV | ||||||
| 500 | 10~12 | ±2×2.5 ±5 | 0.4~1.14 | Dy11 Yd11 | 0.64 | 4.0~8.0 | 0.385 | 3.9 |
| 630 | 0.48 | 0.46 | 4.46 | |||||
| 800 | 0.48 | 0.56 | 5.4 | |||||
| 1000 | 0.48 | 0.665 | 7.415 | |||||
| 1250 | 0.4 | 0.78 | 8.64 | |||||
| 1600 | 0.32 | 0.94 | 10.44 | |||||
| 2000 | 0.32 | 1.085 | 13.18 | |||||
| 2500 | 0.32 | 1.28 | 15.27 | |||||
| 3000 | 0.32 | 1.547 | 16.797 | |||||
| 3150 | 0.32 | 1.606 | 17.978 | |||||
